Product Description

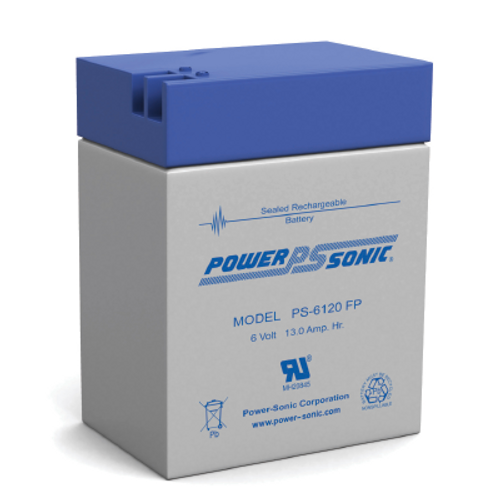

DURA6-14A Duracell Battery Replacement - 6 Volt 13.0 Amp. Hr Sealed Rechargeable

Note: The part number above has been discontinued and will be substituted by an item of equal quality.

Voltage: 6 Volts

Capacity: 13 Amp Hour

Chemistry: AGM - Sealed Lead

Dimensions: L 4.25" x W 2.80" x H 5.55"

Weight: 4.80 lbs.

Features
Absorbent Glass Mat (AGM) technology for superior performance
Valve regulated, spill proof construction allows safe operation in any position
Power/volume ratio yielding unrivaled energy density
Rugged impact resistant ABS case and cover (UL94-HB)
Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B. certifi ed
U.L. recognized under fi le number MH 20845

Performance Specifications
Nominal Voltage ...........................................................................6 volts (3 cells)
Nominal Capacity
20-hr. (650mA to 5.25 volts) ........................................................ 13.00 AH
10-hr. (1.22A to 5.25 volts) .......................................................... 12.20 AH
5-hr. (2.21A to 5.10 volts) .......................................................... 11.05 AH
1-hr. (8A to 4.50 volts) .................................................................. 8.00 AH
15-min. (25.5A to 4.50 volts) .............................................................. 6.38 AH
Approximate Weight ........................................................... 4.80 lbs. (2.18 kg)
Energy Density (20-hr. rate) ................................. 1.18 W-h/in3 (72.20 W-h/l)
Speci? c Energy (20-hr. rate) ............................. 16.25 W-h/lb (35.83 W-h/kg)
Internal Resistance (approx.) ...................................................... 12 milliohms
Max Discharge Current (7 Min.) ............................................... 36.0 amperes
Max Short-Duration Discharge Current (10 Sec.) ................ 120.0 amperes
Shelf Life (% of nominal capacity at 68°F (20°C))
1 Month ...................................................................................................... 97%
3 Months ..................................................................................................... 91%
6 Months .................................................................................................... 83%
Operating Temperature Range
Charge .. ........................................................... -4°F (-20°C) to 122°F (50°C)
Discharge ....................................................... -40°F (-40°C) to 140°F (60°C)
Case ...................................................................................................... ABS Plastic
Power-Sonic Chargers .................................................PSC-61000A, 61000A-C
